Product Overview
The Flexible 500*500mm LED cabinet is a revolutionary LED cabinet designed for seamless integration of creative curved installations.Combining ultra-thin design, high adaptability, and rapid assembly, it empowers users to build dynamic indoor/outdoor displays with unmatched precision and artistic freedom.
Features
1.Compact & Versatile Design

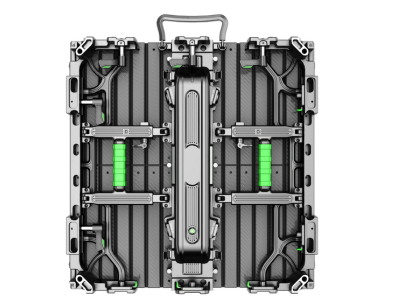

★Cabinet:Dimensions: 500mm × 500mm × 75mm (W × H × D).

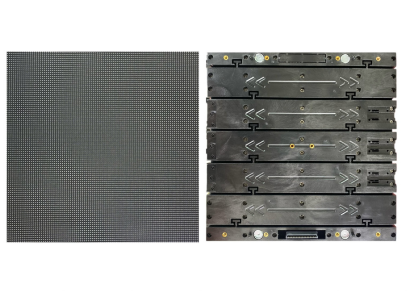

★Compatible Modules size:
Supports 250mm × 250mm soft LED modules.
★Pixel Pitch Options:
Indoor: P2.604 / P2.976 / P3.91.
Outdoor: P2.976 / P3.91 (IP65 protection)
Standard accessories :4 fast locks+4protector corner +4 locating pins+1 handle+1 door plank+1 Power pin+2 arc lock)

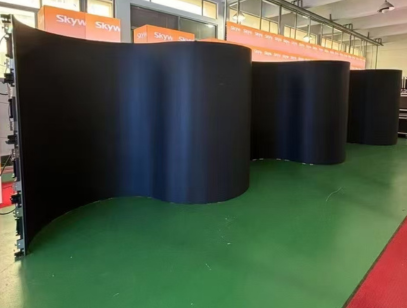

2. Curved Configurations

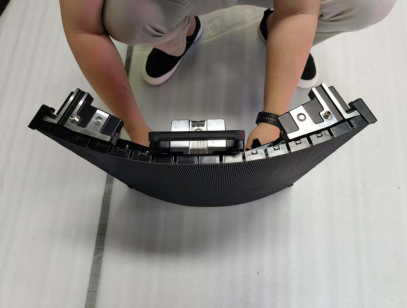

★Bend Radians: Achieve inner arc or outer arc up to 45° per cabinet.

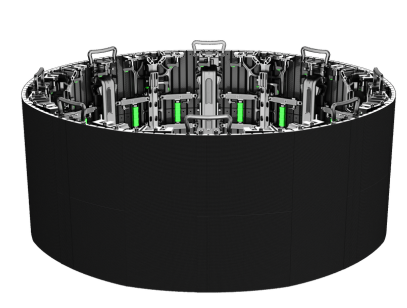

★Full Circle Assembly: 8 cabinets form a perfect 360° ring (diameter customizable).

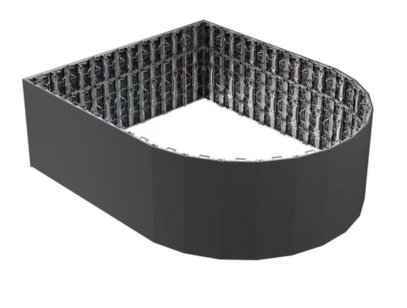

★Hybrid Compatibility: Integrates seamlessly with standard 500×500mm straight LED cabinets for hybrid curved/flat displays.
3.Cable free-design,back access
Unmatched Stability: Cable-free design is to put all the connection cables integrated in the cabinet or module, no need cables connection in the installation , just put all the modules and cabinets pluged with the interface
4. Ultra-Lightweight & Slim Die-Cast Aluminum Cabinet
Lightweight cabinets , simplify handling and reduce labor costs.
Installation Guide
★Installation:Hanging or Fixed
★Curve Configuration
For arcs: Align cabinets at ≤45° angles adjust arc locks .
For full circles: Connect 8 cabinets radially (adjust the angle to 45°,diameter 1.25m).
★Hybrid Assembly
Mix Flexible and standard LED cabinets by aligning magnetic edges.
Applications
Architectural Media Facades
Concert stage backdrops with flowing shapes
Retail window displays with organic curves
Immersive exhibition tunnels
