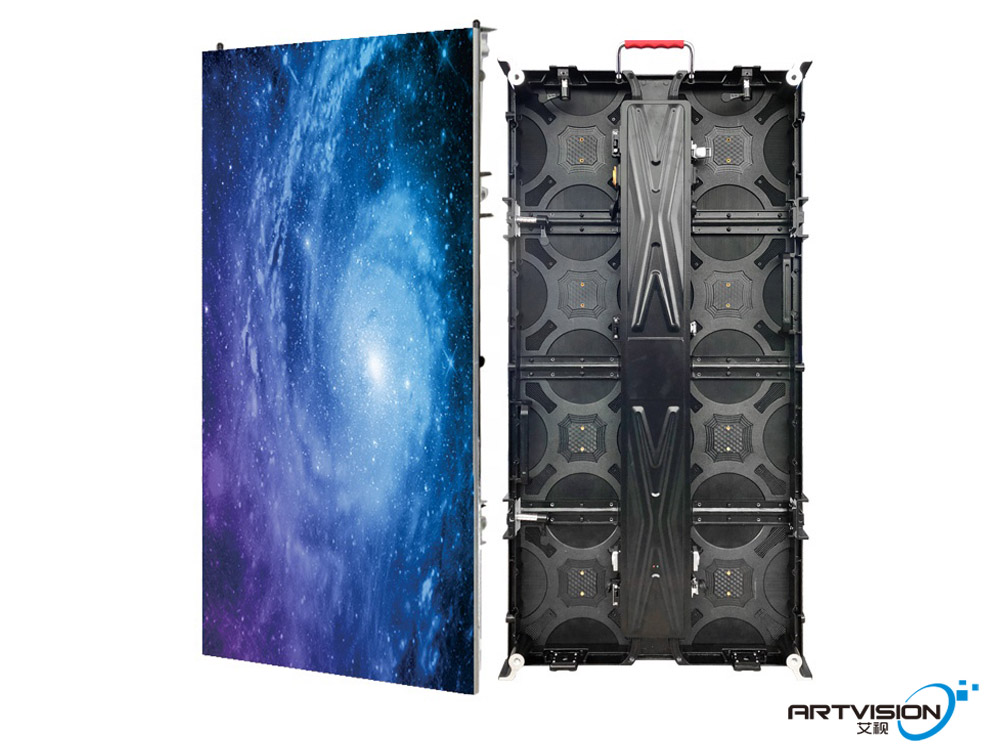

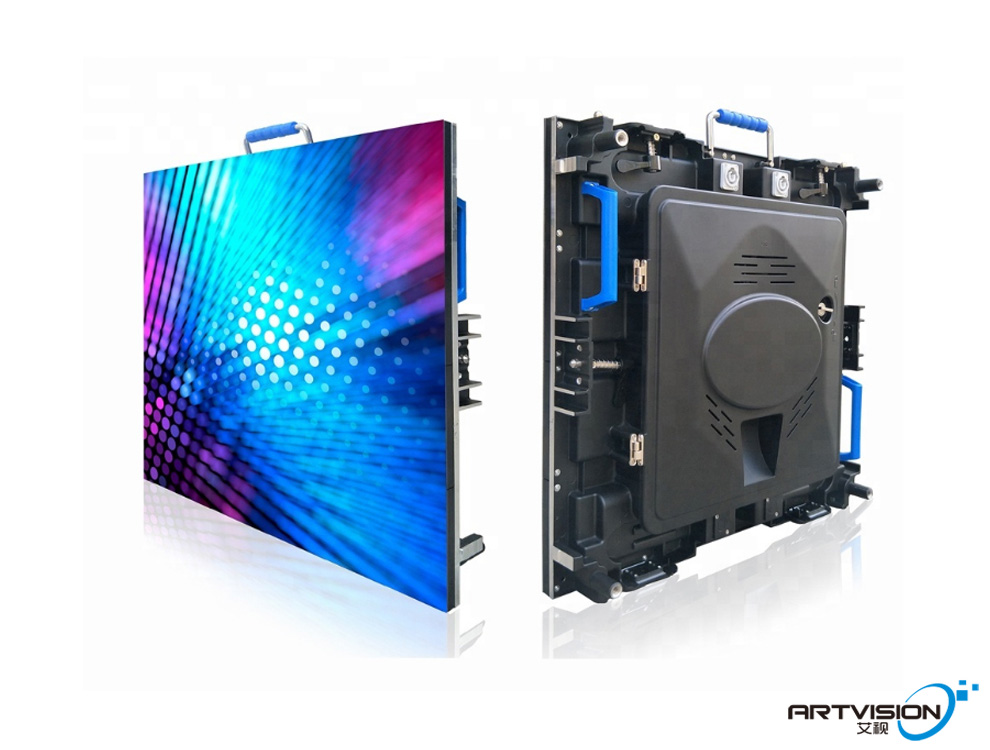

P4.81 Outdoor Rental Led screen Die-Casting Cabinet

 Tips:Click to zoom in
Product Features
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2. Nice appearance and simple structures.

3. Jointed correctly, being installed & dismounted by one person without tool.

4. Humanized operating interface with breakdown indicator lights, easy to maintain.

5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

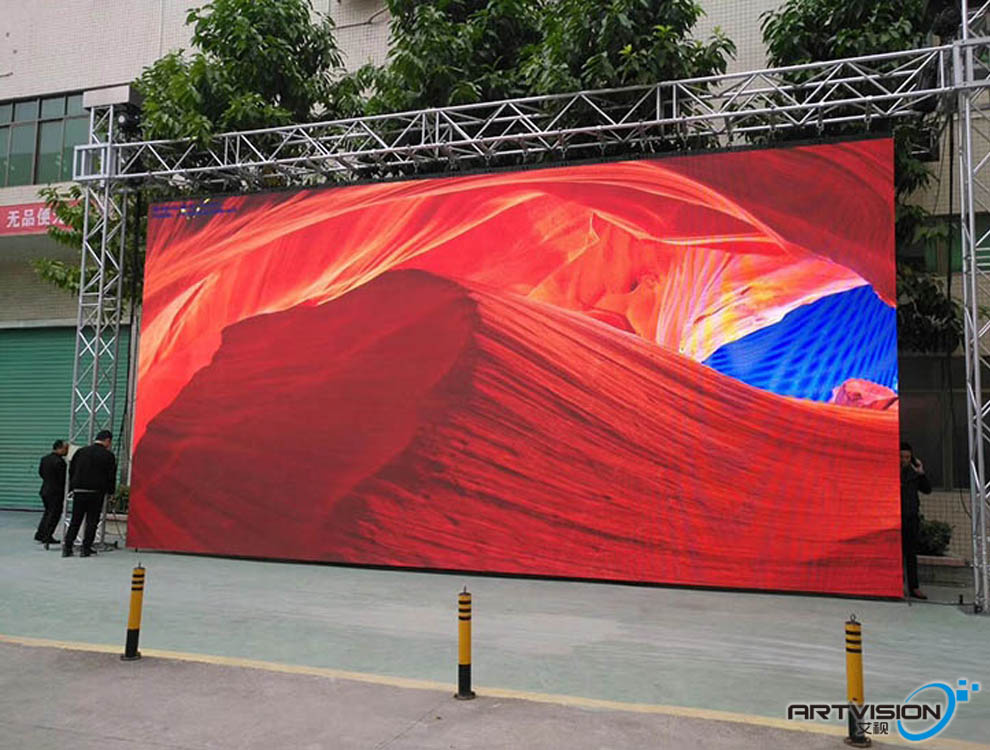

Applications
P4.81 rental led screen widely used in stage rental,singing and dancing event,conferences,exhibitions,stadiums,theaters,auditoriums,lecture halls,multi-purpose halls,conference rooms,interpretation halls,di bars,night clubs,high-end entertainment discos,TV station Spring Festival Evening,auto show,important cultural events in various provinces and cities.

Technical Index
P4.81 Outdoor rental  led video wall

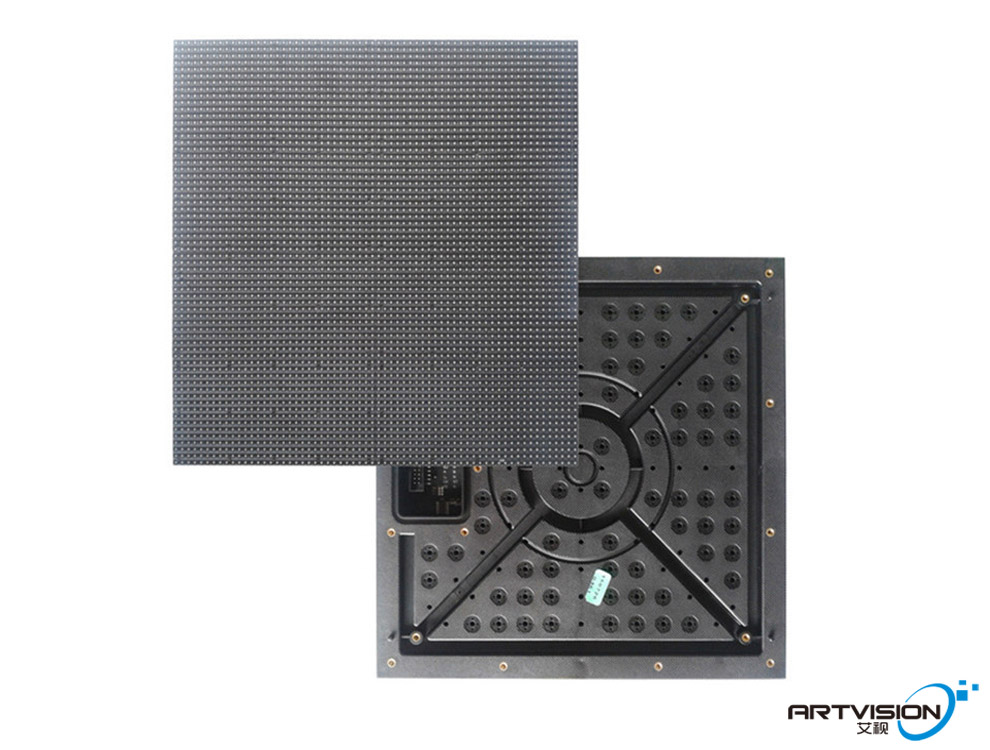

Led module Pixel Pitch 4.81mm
Pixel Configuration SMD2727
Module Resolution 52*52dots
Module Pixles 2704dots
Module Size 250*250mm
LED cabinets Cabinet Size(W*H*D) 500*500*80mm or 500*1000*80mm
Cabinet Resolution 104*104dots or 104*208
Module Quanity 4pcs or 8 pcs
Cabinet Pixels 10816dots or 21632
Material Die Casting Aluminum
whole led display Brightness ≥5000cd/㎡
Pixel Density 43222dots/m2
Driving Method 1/13 scan constant current
View Angle 160H,120V
Optimal Viewing Distance ≥3meters
Brightness Control Red,Green and Blue 4096 Grade/Each
Fresh requency ≥3840Hz
Frame Frequency 50Hz
Input Voltage AC240V/50Hz
Defects Rate ≤0.00001
Power Consumption Max:200W/Cabinet   Average:100W/Cabinet
Screen weight 8.5KG/Cabinet
MTBF >10,000 hours
Life span ≥100,000 hours
Protective Grade IP67
Temperature-operating ﹣35℃~50℃
Humidity-operating  10%~95%
Color depth 16 bit
Controlling system Nova(Sending Card,Receiving Cards and Hubs)
Operating System  Windows XP/7/8/10
