Products Advantage
1. The pixel is tall, the quality is exquisite and realistic, the color is pure and thick.
2. The flatness is good and the picture is uniform and pleasing to the eye.
3. High grayscale and high refresh, the studio video effect is realistic.
4. Safety performance structure, enhanced design is not easy to deform.
5. Large-angle imaging display technology to meet the wide range Angle to view unbiased color.

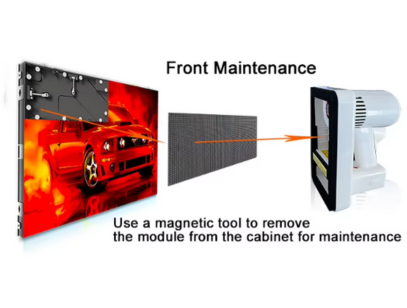

6. It can be designed and maintained on the front and back, easy and fast and easy to maintain.
Product features
1. High brightness which is adjustable to sufficiently meet the needs of various application environments;
2. The raw material of all of the Indoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anticorrosion and antirust;
3. Every production process is well controlled and all of the electronic components are covered by 2mm Tri-Guard Lacquer to ensure no oxidation, no rusty and no moisture. Five-Guard Lacquer will be used for special requirements;
4. All of the cabinets are tested by flush, shower and soaking, to ensure the waterproof;
5. Display even after long-term use of perfect quality reproduction and enough brightness and white balance.

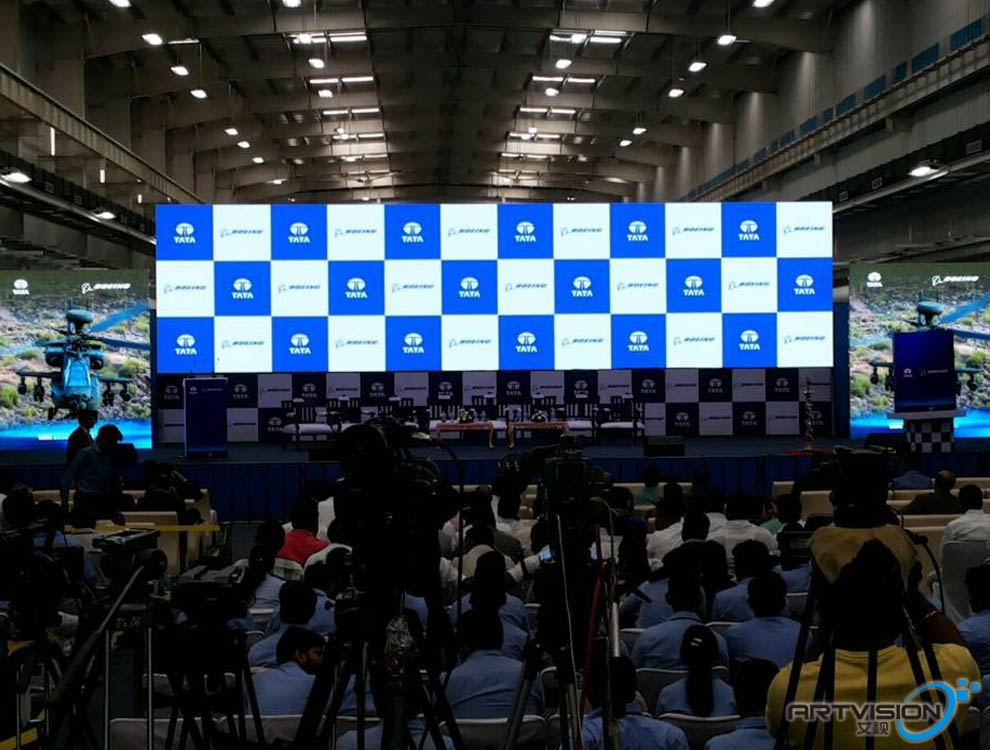

Applications
1.Shopping malls
2.Supermarkets
3.School
4.Public square
5.Station
Technical Index
| Pixel Pitch | P4 |
| Pixel Density | 62500dots/sqm |
| Pixel color RGB | 1R1G1Bdots/sqm |

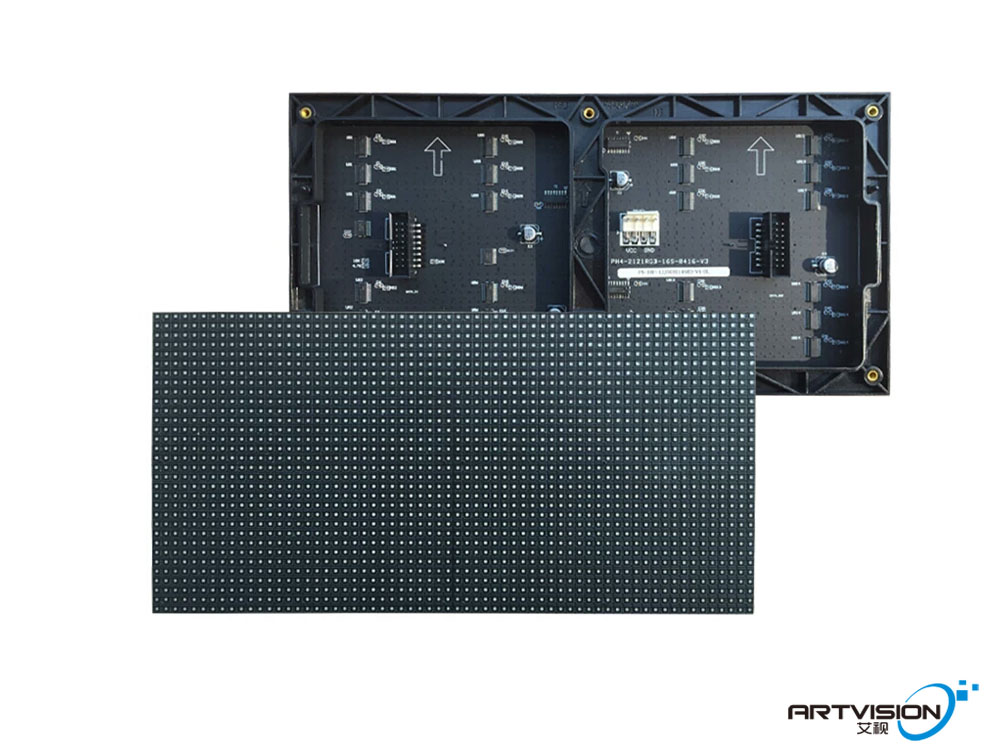

| Module Size | 256mm*128 mm |
| Module Resolution | 64*32 dots |

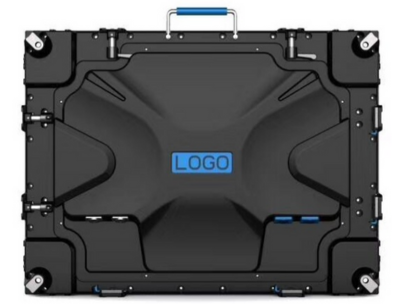

| Cabinet szie | 512mm*512mm |
| Cabinet Resolution | 128*128 |
| Cabinet Weight | 7.6 kg/cabinet |
| View angle | H:160; V:120 |
| Brightness | ≥1200 cd/sqm |
| Power Consumption | 320 w/sqm |
| Drive Mode | 1/16scan |
| Working condition | -15~45℃ |
| Humidity | -10%-95% |
| Life Span Time | ≥100000 hours |
