Product Overview
Fast fixed Outdoor LED Display(module size500*250mm) is engineered for high durability and energy efficiency in harsh outdoor environments. Featuring a rigid aluminum profile cabinet, common cathode LED technology, and hard-connection modules, it delivers superior brightness, low power consumption, and rapid installation. Designed for front/rear maintenance, it is ideal for billboards, stadiums, transportation hubs, and fixed outdoor installations.Compact & Versatile Design

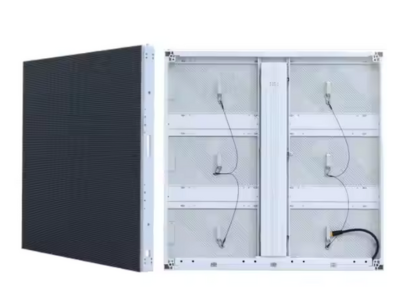

1)★Cabinet:Dimensions:1000mm ×1000mm ×90mm (W × H × D)
★Compatible Modules size:

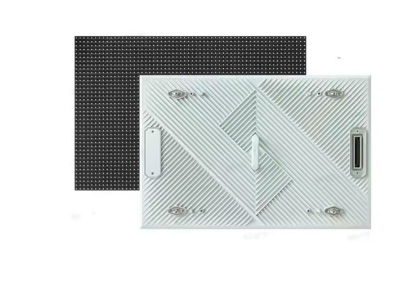

Supports 500mm ×250mm LED modules.
★Pixel Pitch Options:
Outdoor: P2.976/P3.91/P4.81/P7.82/P10.4

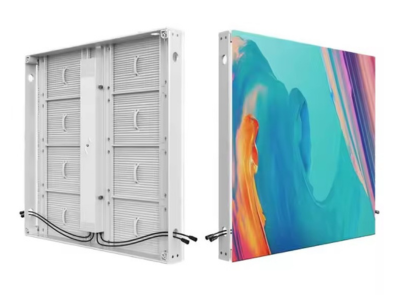

2)★Cabinet:Dimensions:960mm ×960mm ×96mm (W × H × D)
★Compatible Modules size:
Supports 480mm ×320mm LED modules.
★Pixel Pitch Options:
Outdoor: P4.44/P5.71/P6.67/P8/P10
Key Features
★Quick-Install Aluminum ProfileTool-free assembly with interlocking cabinet edges and pre-installed brackets.
Supports ground stacking, wall mounting, and truss systems.
★Slim and Light weight design
Aluminum alloy cabinet design to be 27kg, thickness 96mm, lighter than conventional cabinets in the market,High stability, High durability and High installation safety.★Cable free-design

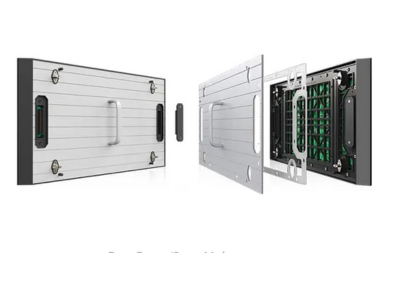

Unmatched Stability: Cable-free design is to put all the connection cables integrated in the cabinet or module, no need cables connection in the installation , just put all the modules and cabinets pluged with the interface

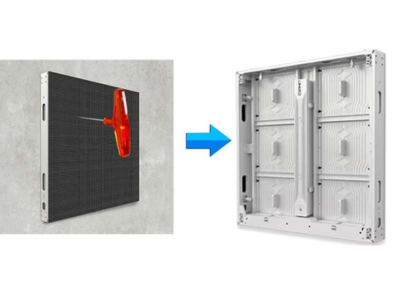

★ Front/Rear Maintenance

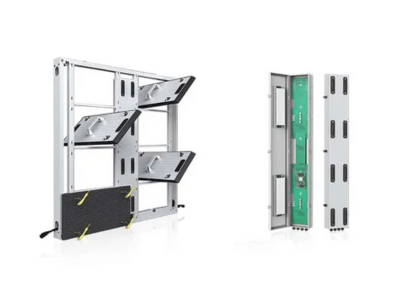

Front maintenance, the modules, power supply, receiving card and other components can be disassembled from the front.
At the same time, traditional rear maintenance is also supported.
★ Common Cathode Energy Saving
Reduces power consumption by 30% compared to traditional common anode LEDs.
Minimizes heat generation, extending LED lifespan and stability.
Installation Options:
Wall-mounted with pre-drilled brackets.
Ground-supported via base stand or stacking.

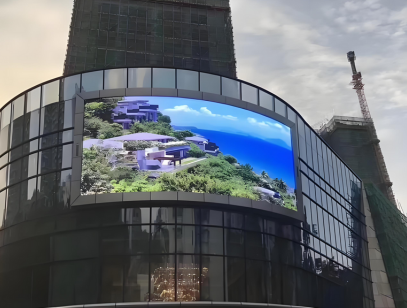

Curved installations (±10° adjustable).

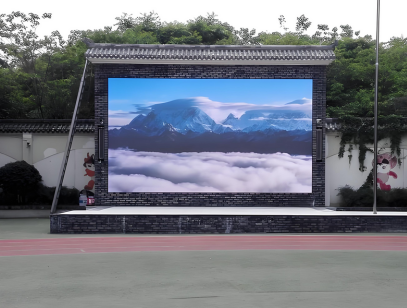

Applications
Various advertising publish, retail store, shopping mall, welcome display, exhibition hall, airport, subway, Restaurant & Hotel Supplies, education,medical treatment
