Product features
|

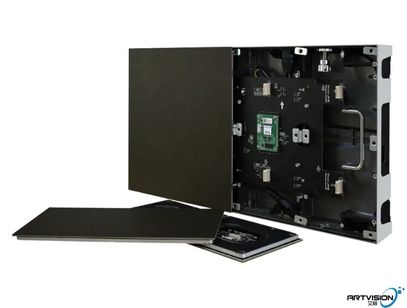

600x337.5mm cabinet indoor rental LED display 1. Light weight cabinet design. |
| 2. Seamless stitching, high resolution. |
| 3. Color uniformity,high contrast,clear picture. |
| 4. Die-casting aluminum cabinet,good heat dissipation. |
| 5. Fast assemble : clients can easily replace the spare module in time if something wrong with the working. |
Applications

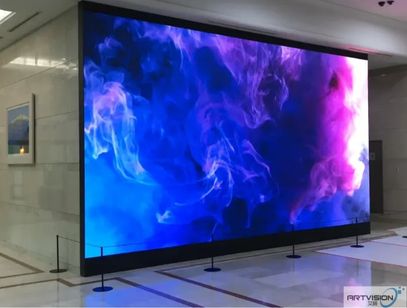

Broadcast,TV studio,Airport,Exhibition,Conference,Military Monitor,Star Hotel,Metro station,Luxury store
Technical
Technical
| Item | Technical parameter:GOB 1.56 | |

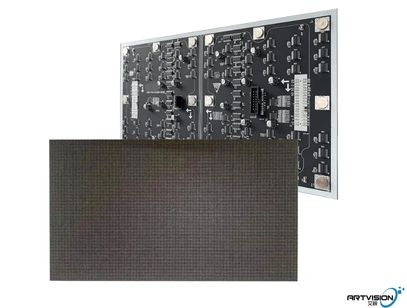

| Led Module | Dimension Size | （W）300*168.75mm（H） |
| Pixel pitch | 1.56mm | |
| Pixel Density | 409600/ M2 | |
| Drive type | 1/60 Scan | |
| LED specification | GOB | |
| Pixel resolution | （W）192*108（H） | |
| Max power | 22W | |
| Panel current | 4-4.5A | |
| Panel weight | 0.2KG | |
| LED Cabinet | LED cabinet size | 600*337.5mm |
| Cabinet resolution | 384*216dots | |
| Quantity of panel(pcs/sqm) | 4 | |
| Cabinet design | Cable free design+front access | |
| Material | Die-casting | |
| Received card | A8S-N | |
| Panel power supply | 4.2V40A | |
| Technical Parameter | Driving device | 1065 Constant current drive |
| Refresh frequency | 3840HZ | |
| Display color | 4096*4096*4096 | |
| Brightness | 600cd/M2 | |
| IP Protection | IP65 in front ,IP31 in back | |
| Best viewing angle | Horizontal >140 Vertical>140 | |
| Best viewing distance | 1-20M | |
| Working temperature | -80 | |
| Panel power supply | 4.2V40A | |
| Screen power supply | 220/110 VAC/50HZ+_10% | |
| Max power | <650W/m² | |
| Average power | 300W/m² | |
| Power quantity | 200W/8PCS | |
| Life span | 100000Hours | |
| Communication distance | <100M | |
