P2.6-5.2 Indoor Glass Transparent LED Screen

 Tips：Click to zoom in

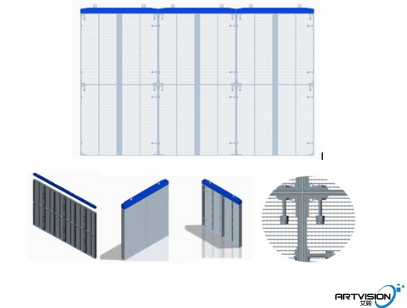

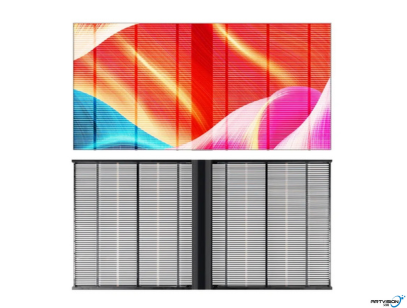

Transparent led cabinet
Hanging installtion

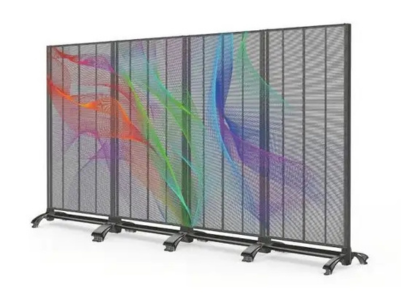

Standing installation
Transparent LED Screen Case

Overview

  • The P2.6-5.2 transparent led display is a new technology with sleek design, offering high transparency and vivid visuals for modern indoor applications. Ideal for commercial and creative spaces, it delivers seamless integration with architectural elements while maintaining natural light transmission.

  • Key Features

    ★Brightness adjustable
    Indoor and Semi-outdoor usage
    It is divided into low-brightness, medium-brightness, and high-brightness for option:1000cd/sqm,2500cd/sqm ,5000cd/sqm
    ★High Transparency:
    60% light transmission ensures natural lighting and aesthetic integration
    ★Easy Maintenance：
    Front/rear access, modular replacement, and tool-free installation.
    ★Middle fast lock:
    in order to keep flatness and quick assemble,fast lock can save much time and high level flatness.

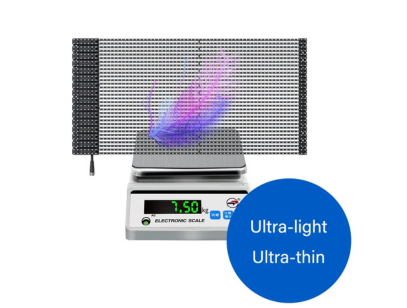

    ★Super Thin and Light Weight
    The thickness of the panel is only 3.5mm, and the weightl is about 8kg/㎡
    ★Customizable:
    Products can be customized according to on-site needs, or the panels can be cut
    accordingly.

      • Installation

              • Hanging ,wall-mounted, or floor-standing




    Applications

          • Retail: Window displays, interactive product showcases.

          • Exhibitions & Museums: Dynamic content on transparent partitions.

          • Corporate Spaces: Lobby branding, glass wall integrations.

          • Architectural Design: Transparent media façades, light-art installations.


    Technical Specification

    •

     Item

    P2.6-5.2 Indoor Glass Transparent LED Screen
    Led Module Dimension Size （W）500*125mm（H）
    Pixel pitch 2.6-5.2mm
    Pixel Density 61952/ M2
    Drive type 1/11Scan
    LED specification SMD2121 (Indoor)
    SMD1921(Semi-outdoor)
    Pixel resolution 192(W)*24（H）

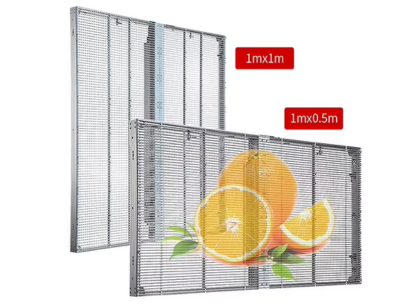

    LED Cabinet LED cabinet size 1000*1000  or customized
    Cabinet resolution 384*192 dots or customized
    Quantity of panel(pcs/sqm) 16
    Cabinet design Front/rear access
    Material Aluminum
    Cabinet Weight（Kg） 8kg/set
     Technical Parameter Driving device ICN2153 Constant current drive
    Refresh frequency 3840HZ
    Display color 4096*4096*4096
    Brightness 1000/2500/5000 cd/M2  can be choosed
    IP Protection IP31
    Best viewing angle Horizontal >140  Vertical>140
    Best viewing distance 3M
    Working temperature -20-+60
    Humidity-operating 10%～95%
    Defects Rate ≤0.00001
    Panel power supply 5V60A
    Screen power supply 220/110 VAC/50HZ+_10%
    Max power  <540W/m²
    Average power  180W/m²
    Power quantity 200W/6PCS
    Life span 100000Hours
    Communication distance <100M

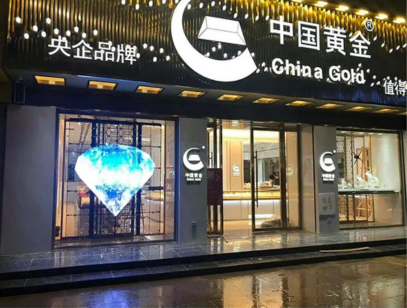

    Case
