P3.91/P6.25/P7.8/P10.4 Holographic Invisible LED Screen

 Tips：Click to zoom in

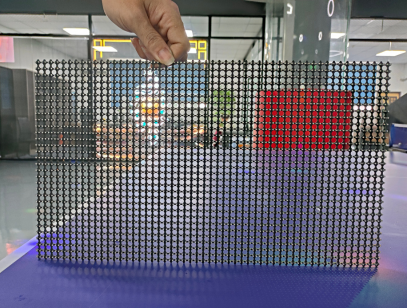

Holographic Invisible LED module
Flexibility

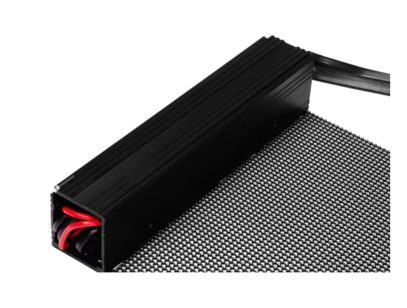

Holographic LED cabinet

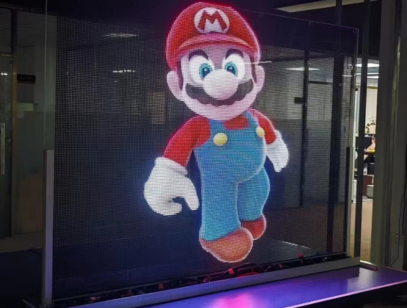

Holographic Invisible LED screen

Overview

  • Holographic Invisible LED technology creates stunning floating visuals while maintaining 85%+ transparency. Perfect for luxury retail, museums, and futuristic architecture, these ultra-thin screens deliver 4K brilliance by day and captivating holographic effects by night. Energy-efficient, seamless, and invisible when off—redefine spaces without rebuilding them.

  • Key Features

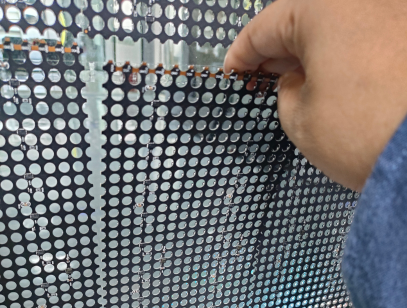

    Flexibility

    The product can be bent significantly front and back and is not easily damaged.


    Highly Transparent:
    When the screen is not light up, it has a transparency of 70%~80%

    Super thin and light design:
    Thickness 3.97mm, weight 4kg/m²


    Customizable Cutting Available

    Product can be customized according to on-site needs, or the panels can be directly cut.




      • Installation

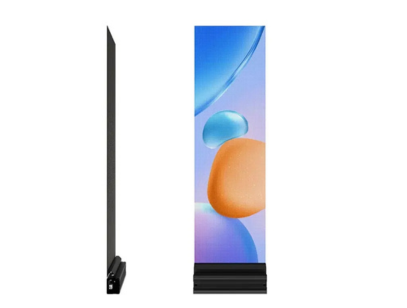

              • Hanging ,wall-mounted, or floor-standing




    Applications

          • Brand Chain:Jewelry, business halls, 4S stores, hotels, shoes and clothing stores, luxury stores, etc.



            Commercial complex:Sightseeing elevators, glass walls, shopping mall atriums, glass cabinets, glass guardrails, etc.



            Creative Display:Science and technology museums, museums,
            theaters, exhibition halls, automotive glass, etc.



            Transportation Media Center:Airport, high-speed train, bus station ,Subway station etc.


    Technical Specification
    •
    • ITEM NAME Holographic Invisible LED screen
      Universal size P3.91 P6.25 P7.8 P10.4
      Lamp(mm) 1415/1515 (RGB) 1921/2020(RGB) 1921/2020(RGB) 1921/2020(RGB)
      Pixel Density（dots/㎡） 65536dots/sqm 25600dots/sqm 16384dots/sqm 9216dots/sqm
      Scanning Mode static static static static
      Module size（mm） 1000*125mm 1000*125mm 1000*125mm 1000*125mm
      Module resolution 256*32 160*20 128*16 96*12
      Cabinet size （mm） 1000*500mm 1000*500mm 1000*500mm 1000*500mm
      Cabinet resolution 256*128 160*80 128*64 96*48
      Transparent 70% 70% 75% 80%
      Maximum power consumption/㎡ ≤800W ≤800W ≤800W ≤800W
      Average power consumption/㎡ ≤260W ≤260W ≤260W ≤260W
      Brightness 400-4500CD/㎡ 400-4500CD/㎡ 400-4000CD/㎡ 400-3500CD/㎡
      Refresh rate ≤7680HZ ≤7680HZ ≤7680HZ ≤7680HZ
      Maximum power consumption (W) 1500 2400 3900 5400
      Average Power Consumption(W) 500 800 1300 1800
      Weight(kg) 90 115 150 200
      Refresh (Hz) ≥3840 ≥3840 ≥3840 ≥3840
      Visual angle 160°/160° 160°/160° 160°/160° 160°/160°
      IP grade IP31 IP31 IP31 IP31
      Color temperature  2000-9500 2000-9500 2000-9500 2000-9500
       Brightness CD/㎡ 500-700 250-500 250-500 250-500
      IP grade  Android 11.0—Mee210  Android 11.0—Mee210 Android 11.0—Mee210 Android 11.0—Mee210
      Cabinet material Aluminum Aluminum Aluminum Aluminum
      Temperature-operating ﹣10℃～60℃
      Humidity-operating 10%～85%
      Input voltage AC110-240V 50/60HZ
      Installation method rear-maintenance/ sticker glas
      Cabinet Weight <4.3kg
      RFX1 Audio interface Built-in 20W speaker, external AudioX1 interface
      Control mode RJ45x1,TOUCH-USBx1, Bluetooth 5.0, Wifi, infrared remote control
      Input voltage 100-240V-50/60Hz
      Life span ≥100000H
      Cabinet Weight black
      Control System Novastar/Colorlight/Huidu
    •

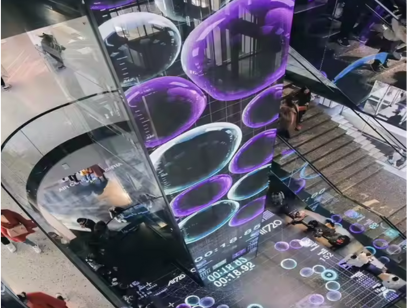

    Case
