Integrated Conference LED Display

 Tips：Click to zoom in
Conference LED Display
All in one design

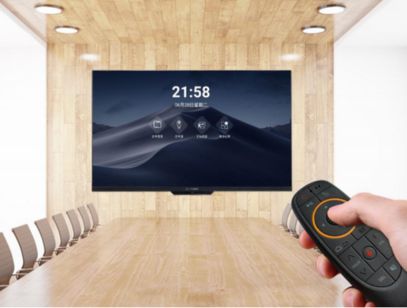

wireless control mode

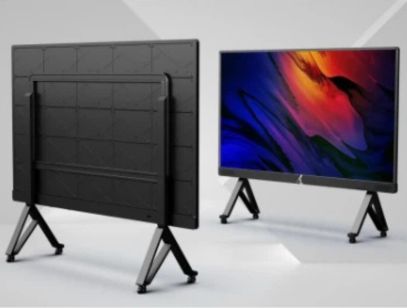

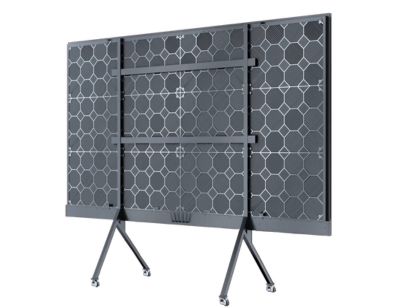

the back of Conference LED Display

Overview

  • Integrated Conference LED Display is a  all-in-one meeting solution designed for modern collaborative environments. Integrating high-resolution display, video conferencing, audio system, and interactive tools, it streamlines presentations, remote meetings, and brainstorming sessions.

  • Key Features

    COB /GOB Technology Excellence
    Superior Durability: COB/GOB packaging ensures robust protection against moisture, dust, and physical impact, ideal for 24/7 operation.
    Enhanced Visuals: Higher contrast ratio and wider viewing angles (up to 170°) with seamless pixel transitions, perfect for control rooms, studios, and luxury retail.


    Cable free design
    Unmatched Stability: Cable-free design is to put all the connection cables integrated in the cabinet or module, no need cables connection in the installation , just put all the modules and  cabinets  pluged with the interface

    User-friendly
    Support computer, mobile phone, tablet multi- platform wireless projection screen, support up to 9 screen display at the same time;
    Supports screen sharing, syncing markup content, and more Platform terminal wireless screen projection, window, MAC OS, iOS, Android system;
    Support the loading and unloading of various Android TV versions of Tencent - Cloud Audio-visual Aurora TV APK, iQiyi, Kiwi TV, etc.

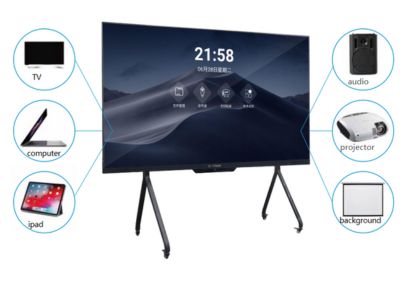

    Intgrated Design

    All in one：TV, computer, ipad, background, audio, projector




      • Installation

              • wall-mounted, or floor-standing




    Applications

          • Corporate Boardrooms：Executive decision-making with global teams

            University Lecture Halls：Interactive hybrid classrooms

            Medical Collaboration：Surgical training & multidisciplinary team (MDT) meetings

            Industrial Design Centers：3D prototype reviews with remote engineers


    Technical Specification
    •
    • ITEM NAME Integrated Conference LED Display
      Universal size 84 inch 108 inch 120 inch 136 inch 163
      Pixel pitch 1.25 1.25 1.25 1.56  1.56
      Display size  1800*1012.5mm 2400*1350mm 2560*1440mm 3000*1687.5mm 3600*2025mm
      Pixel Density（dots/㎡） 640000dots/sqm 640000dots/sqm 640000dots/sqm 40 9600dots/sqm 40 9600dots/sqm
      LED packaging COB/GOB COB/GOB GOB COB/GOB COB/GOB
      Scanning Mode 45 scan 45 scan 64 scan 48 scan 48 scan
      Module size 150*168.75 150*168.75 320*160 150*168.75 150*168.75
      Module resolution 120*135 120*135 256*128 96*108 96*108
       Cabinet size 600*337.5 600*337.5 640*480 600*337.5 600*337.5
      Cabinet  resolution 480*270 480*270 512*384 384*216 384*216
      Material Die-casting Die-casting Die-casting Die-casting Die-casting
      Cabinet Weight（Kg） 6Kg/set 6Kg/set 6.5Kg/set 6Kg/set 6Kg/set
      Cabinet design Cable free design+front access Cable free design+front access front access Cable free design+front access Cable free design+front access
      Refresh rate ≤7680HZ ≤7680HZ ≤7680HZ ≤7680HZ ≤7680HZ
      Installation method bottom frame with wheel bottom frame with wheel bottom frame with wheel bottom frame with wheel bottom frame with wheel
      Positive protection front IP65           back IP31 front IP65           back IP31 front IP65           back IP31 front IP65           back IP31 front IP65           back IP31
      Maximum power consumption (W) 1500 2400 2600 3900 5400
      Average Power Consumption(W) 500 800 1000 1300 1800
      Weight(kg) 90 115 125 150 200
      Refresh (Hz) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
      Visual angle 160°/160° 160° 160° 160° 160°
      Contrast 6000:01:00 6000:01:00 6000:01:00 6000:01:00 6000:01:00
      Color temperature 2000-9500 2000-9500 2000-9500 2000-9500 2000-9500
       Brightness CD/㎡ 500-700 250-500 250-500 250-500 250-500
      Running  system  Android 11.0—Mee210  Android 11.0—Mee210  Android 11.0—Mee210 Android 11.0—Mee210 Android 11.0—Mee210
      Configuration Standard 16GB memory Standard 16GB memory Standard 16GB memory Standard 32 GB memory Standard 16GB memory
      Brightness Uniformity <3%
      Temperature-operating ﹣10℃～60℃
      Humidity-operating 10%～85%
      Control System Novastar or Colorlight
      Response time ≤0.5ms
      Video interface HDMIX3，USB3.0X1，USD2.0X2
      RFX1 Audio interface Built-in 20W speaker, external AudioX1 interface
      Control mode RJ45x1,TOUCH-USBx1, Bluetooth 5.0, Wifi, infrared remote control
      Input voltage 100-240V-50/60Hz
      Life span ≥100000H
      Frame Color black
      Wireless projection Built-in Wifi transmission and transmission AP, with no screen transfer function, stable and fast signal, support 1920*1080, no need to install software, one-click screen transfer, 1-to-1, APP support
      Touch function  Customer choice
