P6.67 outdoor LED Videotron

 Tips：Click to zoom in

Overview

  • The P6.67 Outdoor LED Videotron is a high-brightness, large-pixel-pitch solution engineered for outdoor applications requiring long-distance visibility and robust performance. Featuring a pixel pitch of 6.67mm, a compact module size of 320mm x 160mm, and SMD3535 LEDs delivering 6,000 cd/m² brightness, this display excels in environments with direct sunlight, extreme temperatures, and heavy foot traffic. Designed for large-scale installations, it balances cost-effectiveness with reliability, making it ideal for advertising, public information systems, and event staging.


  • Key Features

    1.Optimized for Long-Distance Viewing

    • Pixel Pitch: 6.67mm

    • Pixel Density: 22,500 pixels per square meter.

    • Module Resolution: 48 x 24 pixels per module (320mm x 160mm).

    • Scalability: Easily assemble modules to create large-scale displays with resolutions up to 4K.

    The 6.67mm pixel pitch ensures clear visibility for audiences at 10–100 meters, ideal for billboards, stadiums, and transportation hubs.


    • 2. High-Brightness Performance

      • Brightness: 6,000 cd/m² (adjustable), ensuring vivid visuals even in direct sunlight.

      • Contrast Ratio: 5,000:1 for enhanced depth and color accuracy.

      • Refresh Rate: 3,840Hz, eliminating flicker and ensuring smooth motion for video content.

      • Color Performance: 16-bit color depth, 85% NTSC gamut coverage for vibrant, true-to-life imagery.

      • 3.Rugged Outdoor Design

  • IP Rating: IP65 certified for full protection against dust, rain, and humidity.

  • Temperature Range: Stable operation from -30°C to +60°C.

  • Anti-Glare & Anti-UV: Surface treatment minimizes reflections and resists UV degradation.

  • SMD3535 LEDs: Durable, high-output LEDs with superior thermal management and longevity.

    •  Advantages

                  • Cost-Effective: Optimized for large installations with lower pixel density, reducing overall project costs.

                  • High Brightness: 6,000 cd/m² ensures readability in direct sunlight.

                  • Durability: SMD3535 LEDs and IP65-rated cabinets withstand harsh weather and vandalism.

                  • Energy Efficiency: Advanced driver ICs reduce power consumption

            •

Applications

    • The P6.67 LED Videotron is tailored for large outdoor installations requiring long-range visibility:

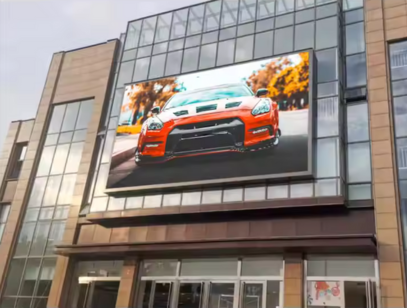

      • Highway Billboards: High-impact advertising for fast-moving traffic.

      • Sports Stadiums: Scoreboards and live event broadcasts for large audiences.

      • Airports & Train Stations: Real-time flight/train schedules and emergency alerts.

      • Concert Venues: Dynamic stage backdrops and live feeds.


Technical Specification

  •

 Item

 Technical parameter:P6.67 SMD outdoor LED Videotron

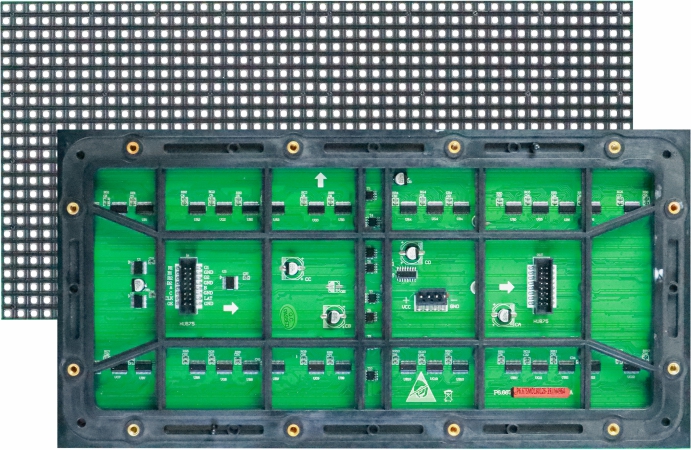

Led Module Dimension Size （W）320*160（H）
Pixel pitch 6.67mm
Pixel Density 22500/ M2
Drive type 1/6Scan
LED specification SMD3535
Pixel resolution （W）48*24（H）
Average  power 15W
Panel current 7.5-8A
Panel weight 0.4KG

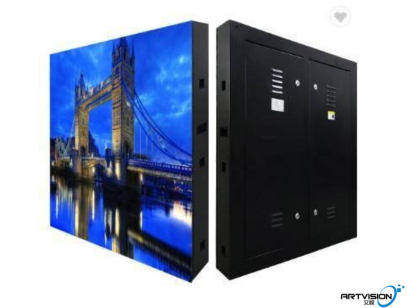

LED Cabinet LED cabinet size 640*640mm/960*960mm
Cabinet resolution 96*96/144*144dots
Quantity of panel(pcs/Cabinet) 8/18
Cabinet design Back access
Material Die-casting/Steel
Received card MRV412/DH7508S
Panel power supply 5V40A
 Technical Parameter Driving device 16380/ICN2153 Constant current drive
Refresh frequency 3840HZ
Display color 4096*4096*4096
Brightness 6000cd/M2
IP Protection IP65
Best viewing angle Horizontal >140  Vertical>140
Best viewing distance 2.5-50M
Working temperature -20-+60
Panel power supply 5V40A
Screen power supply 220/110 VAC/50HZ+_10%
Max power  <800W/m²
Average power  360W/m²
Power quantity 200W/4PCS
Life span 100000Hours
Communication distance <100M
