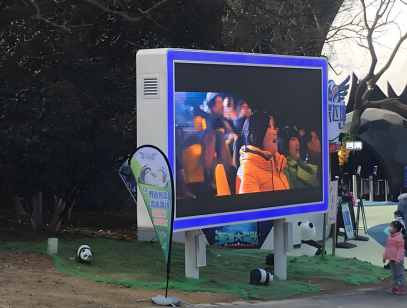

P2.5 Outdoor led advertising sign

 Tips：Click to zoom in

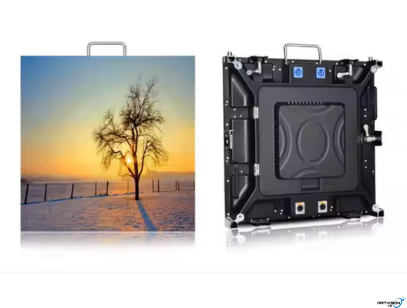

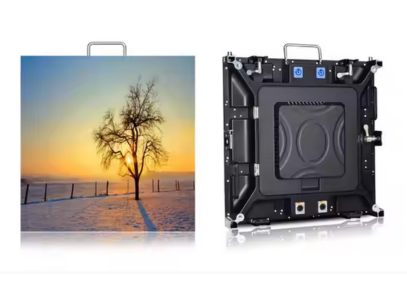

640*640mm led cabinet
P2.5 outdoor led display

Overview

  • The P2.5 Outdoor LED Display is a fine pitch outdoor designed for high-definition visual performance in demanding outdoor environments. With a pixel pitch of 2.5mm, this display delivers exceptional image clarity, superior color reproduction, and seamless video playback, making it ideal for applications requiring precision and impact. Its ultra-high pixel density ensures stunning resolution even at close viewing distances, setting a new standard for outdoor digital signage.

  • Key Features

    1.Ultra-High Pixel Density

    • Pixel Pitch: 2.5mm
      Pixel Density: 160,000 pixels per square meter (16x higher than conventional P10 outdoor displays).
      Resolution: Supports up to 4K content

    The compact 2.5mm pixel spacing minimizes the "screen door" effect, ensuring smooth gradients and razor-sharp details for text, graphics, and videos.


    2.Superior Image Clarity

    • Brightness: 5,000 nits (adjustable) for visibility in direct sunlight.

    • Contrast Ratio: 5,000:1 for deep blacks and vibrant colors.

    • Refresh Rate: 3,840Hz, eliminating flicker and motion blur for fluid video playback.

    • Color Performance: 16-bit color depth, 85% NTSC gamut coverage.


    3.Rugged Outdoor Design

    • IP Rating: IP65 waterproof and dustproof.

    • Temperature Range: Operates in -30°C to +60°C environments.

    • Anti-Glare Coating: Reduces reflections for clear daytime viewing.

    •  Advantages

            • Density Advantage: 2.5mm pitch outperforms P3/P4 displays in pixel density, enabling smaller screen sizes without sacrificing detail.

            • Future-Proof: Ready for 4K/8K content and HDR compatibility.

            • Energy Efficiency: Advanced LED chips reduce power consumption by 30% vs. older models.


Applications

    • The P2.5 LED display excels in scenarios demanding high resolution and reliability:

      • Advertising Billboards: Captivate audiences with crisp video ads.

      • Sports Stadiums: Broadcast live action in vivid detail.

      • Transportation Hubs: Display schedules and alerts with precision.

      • Event Stages: Enhance live performances with dynamic visuals.


Technical Specification

  •

 Item

 Technical parameter:P2.5 Outdoor Rental LED Display

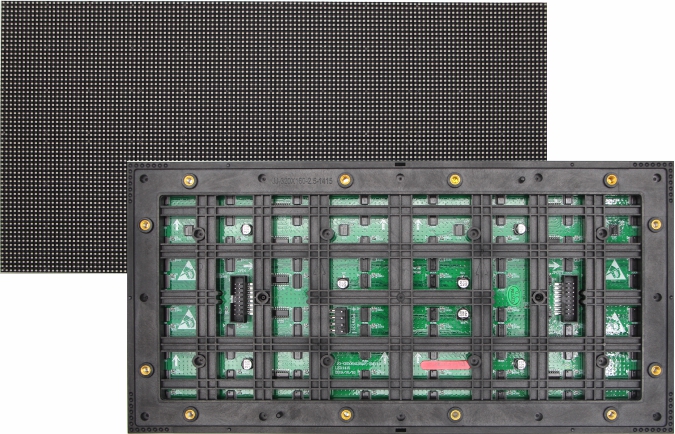

Led Module Dimension Size （W）320*160（H）
Pixel pitch 2.5mm
Pixel Density 160000/ M2
Drive type 1/16Scan
LED specification SMD1415
Pixel resolution （W）128*64（H）
Average  power 16W
Panel current 8A
Panel weight 0.49KG
LED Cabinet LED cabinet size 640*640mm/960*960mm
Cabinet resolution 256*256/384*384dots
Quantity of panel(pcs/Cabinet) 6/18
Cabinet design Back access
Material Die-casting/Steel
Received card MRV412/DH7508S
Panel power supply 5V40A
 Technical Parameter Driving device 16380/ICN2153 Constant current drive
Refresh frequency 3840HZ
Display color 4096*4096*4096
Brightness 5000cd/M2
IP Protection IP65
Best viewing angle Horizontal >140  Vertical>140
Best viewing distance 2.5-50M
Working temperature -20-+60
Panel power supply 5V40A
Screen power supply 220/110 VAC/50HZ+_10%
Max power  <1000W/m²
Average power  320W/m²
Power quantity 200W/4PCS
Life span 100000Hours
Communication distance <100M
