IP65 Aluminum shaped P10.4 Outdoor painel led

 Tips：Click to zoom in

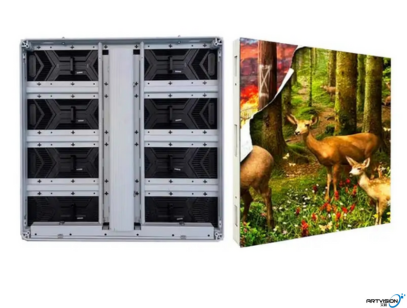

P10.4 led cabinet
P10.4 led screen

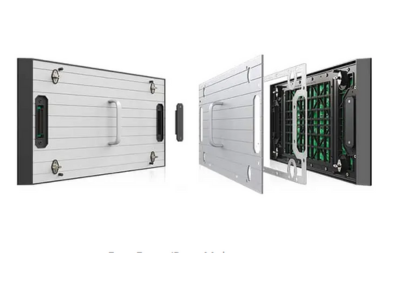

P10.4 led module

  • IP65 Aluminum shaped P10.4 Outdoor painel led (module size500*250mm)  is engineered for high durability and energy efficiency in harsh outdoor environments. Featuring a rigid aluminum profile cabinet, common cathode LED technology, and hard-connection modules, it delivers superior brightness, low power consumption, and rapid installation. Designed for front/rear maintenance, it is ideal for billboards, stadiums, transportation hubs, and fixed outdoor installations.

  • Key Features

    ★Quick-Install Aluminum Profile
    Tool-free assembly with interlocking cabinet edges and pre-installed brackets.
    Supports ground stacking, wall mounting, and truss systems.

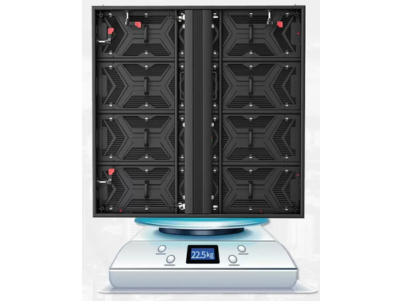

    ★Slim and Light weight design
    Aluminum alloy cabinet design to be 27kg, thickness 96mm, lighter than conventional cabinets in the market,High stability, High durability and High installation safety.
    ★Cable free-design
    Unmatched Stability: Cable-free design is to put all the connection cables integrated in the cabinet or module, no need cables connection in the installation , just put all the modules and  cabinets  pluged with the interface
    ★ Front/Rear Maintenance
    Front maintenance, the modules, power supply, receiving card and other components can be disassembled from the front.
    At the same time, traditional rear maintenance is also supported.
    ★ Common Cathode Energy Saving
    Reduces power consumption by 30% compared to traditional common anode LEDs.
    Minimizes heat generation, extending LED lifespan and stability.


      • Installation Options

              • Wall-mounted with pre-drilled brackets.
                Ground-supported via base stand or stacking.
                Curved installations (±10° adjustable).



    Applications

        • Various advertising publish, retail store, shopping mall, welcome display, exhibition hall, airport, subway, Restaurant & Hotel Supplies, education,
          medical treatment


    Technical Specification

    •

     Item

    IP65 Aluminum shaped P10.4 Outdoor painel led
    Led Module Dimension Size （W）500*250mm（H）
    Pixel pitch 10.4mm
    Pixel Density 9216/ M2
    Drive type 1/2Scan
    LED specification SMD2727
    Pixel resolution （W）48*24（H）
    Max power 90W
    Panel current 9A
    Led module design  common cathode energy-saving or not

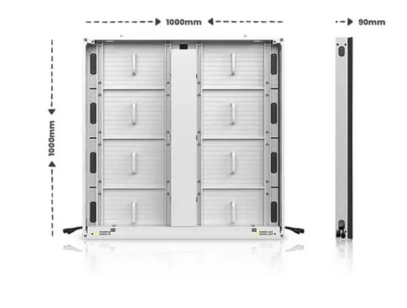

    LED Cabinet LED cabinet size 1000*1000mm
    Cabinet resolution 96*96dots
    Quantity of panel(pcs/sqm) 8
    Cabinet design Front&Back access
    Material Alloy aluminum
    Cabinet Weight（Kg） 25kg/set
    LED fixed design Cable-free
     Technical Parameter Driving device ICN2153 Constant current drive or Energy saving IC
    Refresh frequency 3840HZ
    Display color 4096*4096*4096
    Brightness 6000cd/M2
    IP Protection IP65
    Best viewing angle Horizontal >140  Vertical>140
    Best viewing distance  >3 m
    Working temperature -20-+60
    Panel power supply 2.8V/3.8V
    Screen power supply 220/110 VAC/50HZ+_10%
    Max power  <700W/m²
    Average power  280W/m²
    Power quantity 300W/3PCS
    Life span 100000Hours
    Communication distance <100M

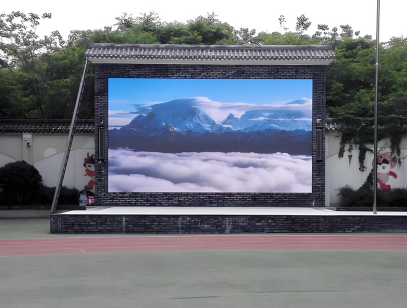

    Case
